GitHub

Middleware's GitHub integration brings your GitHub repositories and Middleware together, giving your team a simple way to monitor, automate, and secure your coding projects. By connecting GitHub to Middleware, you get tools to stay on top of your code, work better as a team, and catch problems fast.

It also enables you to track and monitor key events from your repositories, such as code pushes, commits, pull requests, dependabot alert, and build failures.

This integration connects your GitHub repositories to Middleware, offering two powerful features to enhance your development workflow and monitoring capabilities:

This integration provides real-time insights, streamlines collaboration, automates workflows, and enhances project security—all within the Middleware platform.

Prerequisites

App Configuration

Overview

Set up the App Configuration feature to install a GitHub App that connects your GitHub organization or personal account to Middleware. This integration unlocks advanced capabilities such as fetching and managing issues, creating automated fixes, generating pull requests, and leveraging AI-powered solutions to optimize your code. By configuring the GitHub App, you enable Middleware to securely access your GitHub resources and collect valuable data to streamline your development workflow.

For example, once the GitHub App is installed with the appropriate permissions, you can:

• View and manage GitHub issues directly in Middleware.
• Automate fixes for identified issues and submit them as pull requests.
• Use AI-driven insights to analyze code and receive improvement suggestions—all from your Middleware dashboard.

Setup

Follow these instructions to install and authorize a GitHub App, granting Middleware permission to access resources in GitHub.

If you are an admin in your GitHub organization, you can configure GitHub Apps for your organization. Alternatively, you can create GitHub Apps with a personal GitHub account. Note that enabling certain features may require additional setup beyond creating the GitHub App. Installing the app only grants the prerequisite permissions needed for Middleware features—you won’t incur additional charges for creating the app, and no feature is enabled by default unless explicitly configured.

Create a GitHub App

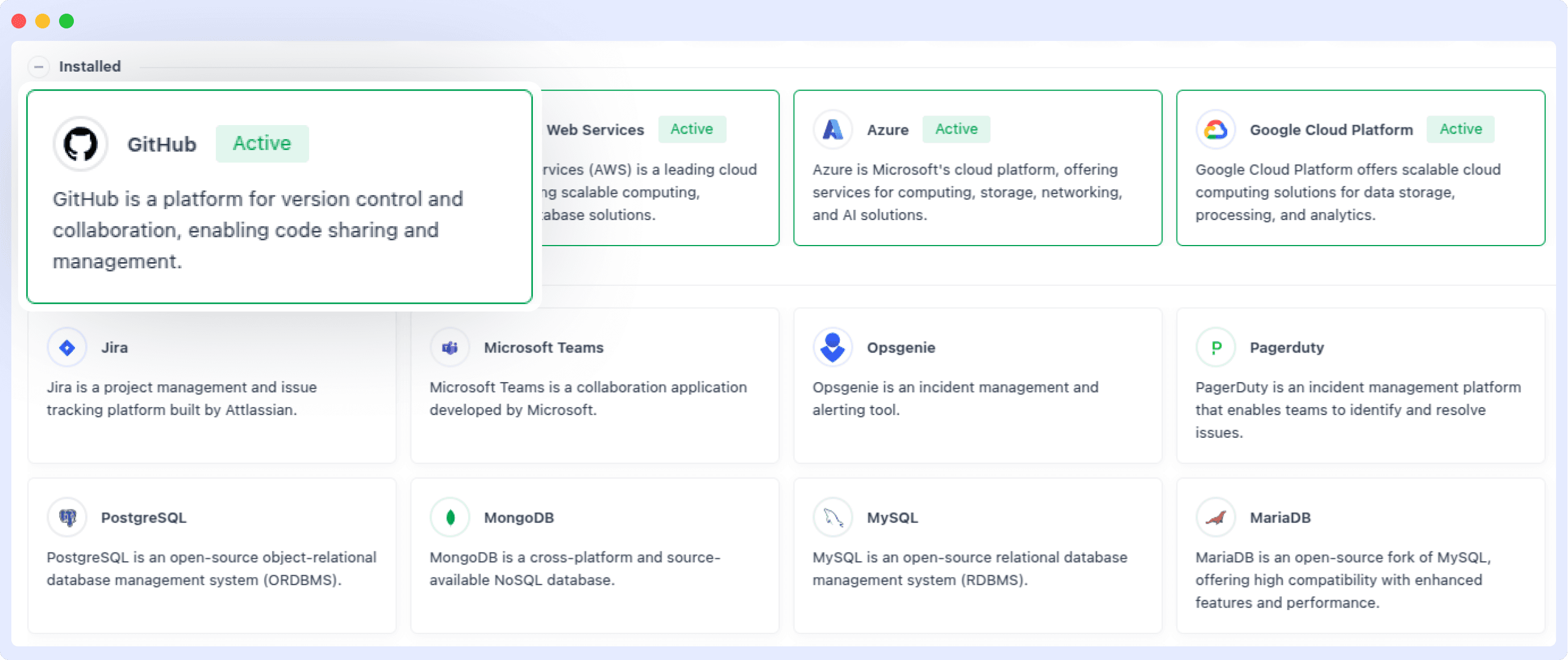

1. Navigate to the Installation > Integration > GitHub Integration, that listed under Collaboration section.

2. Click on the Add New App button.

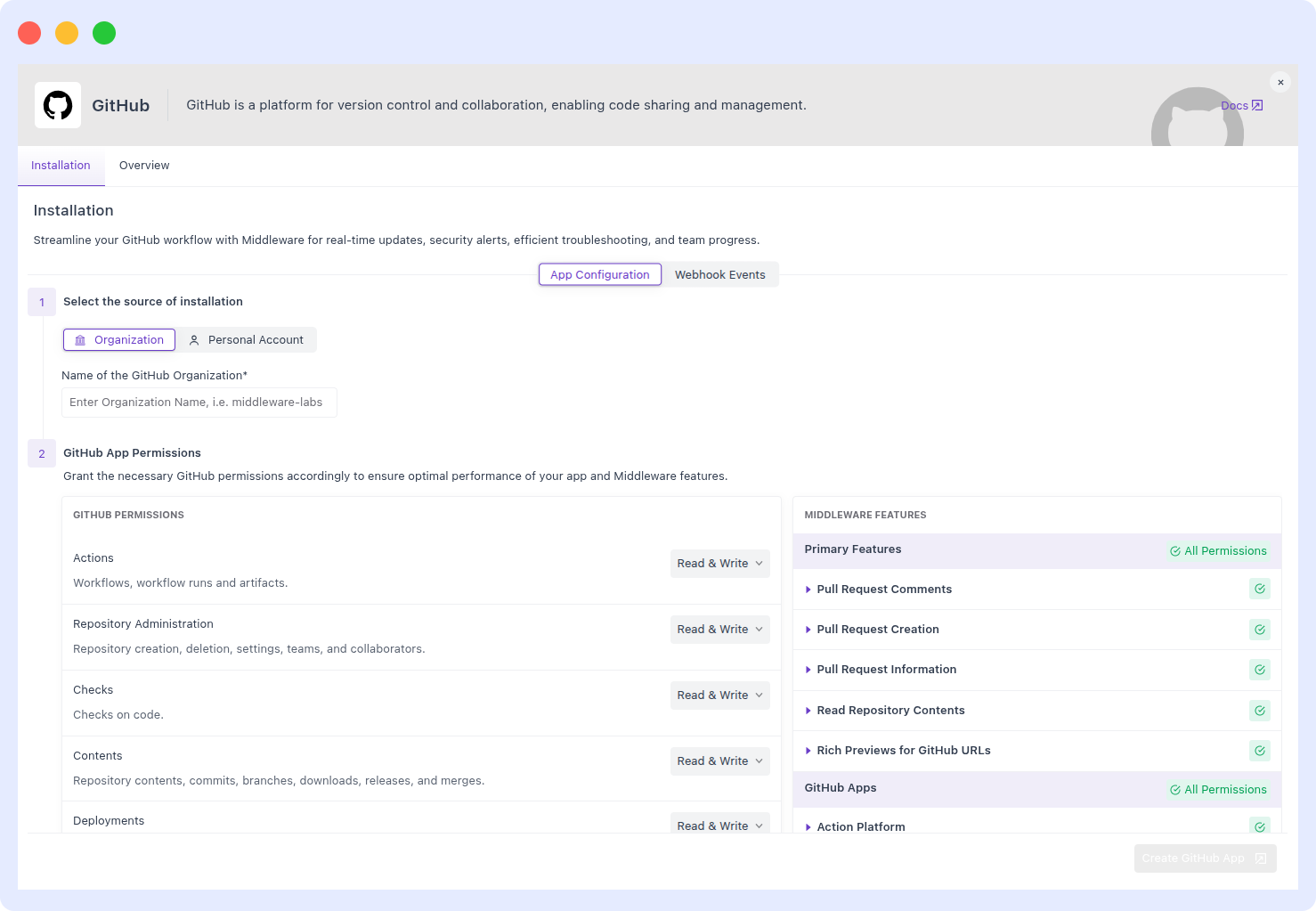

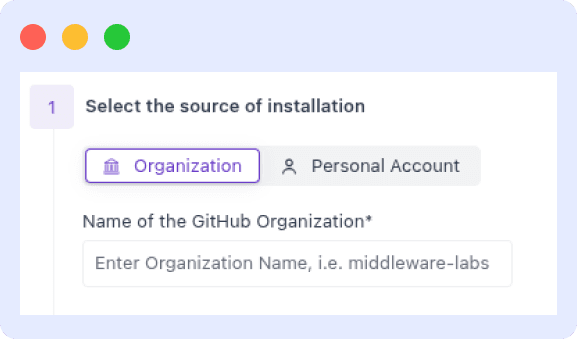

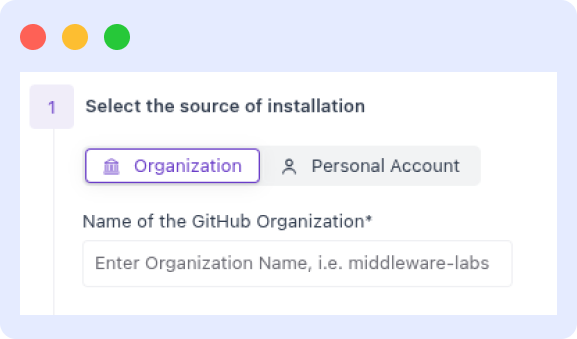

3. Select the source of installation:

   • Organization: Install the app for your GitHub organization.

   • Personal Account: Install the app for your individual GitHub account.

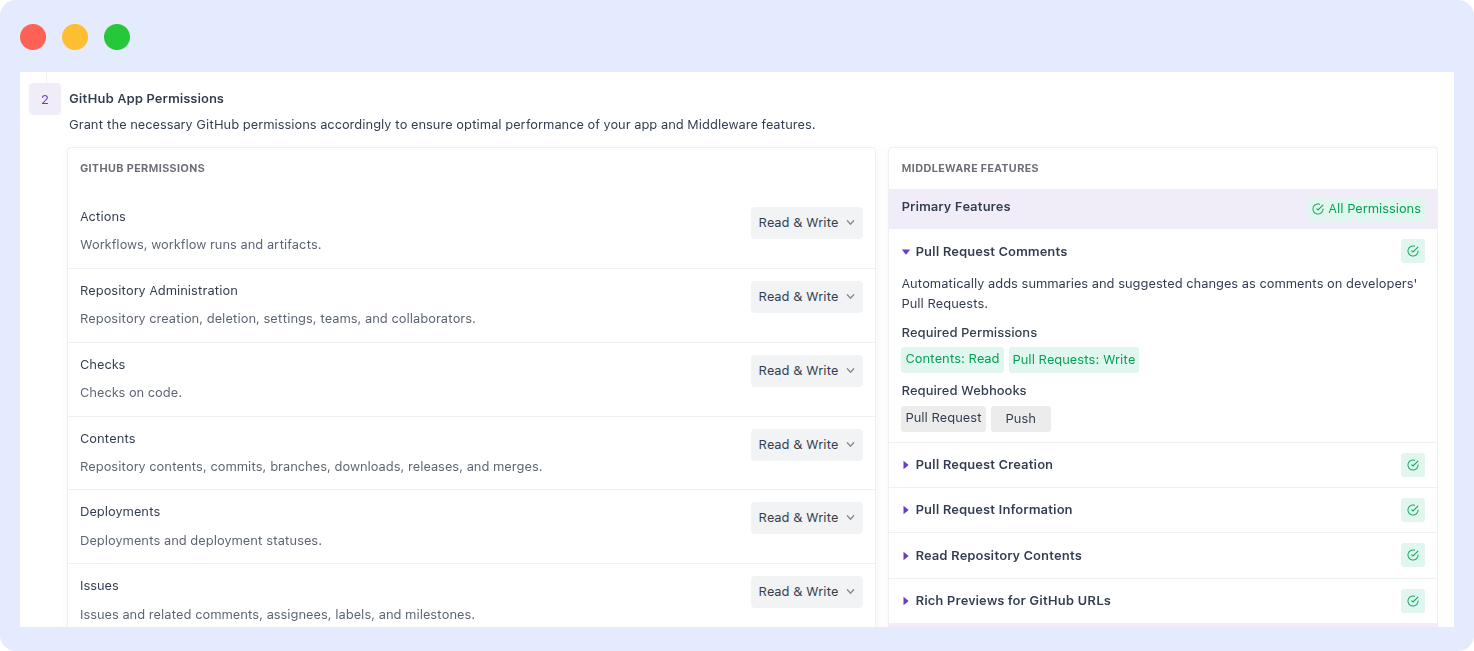

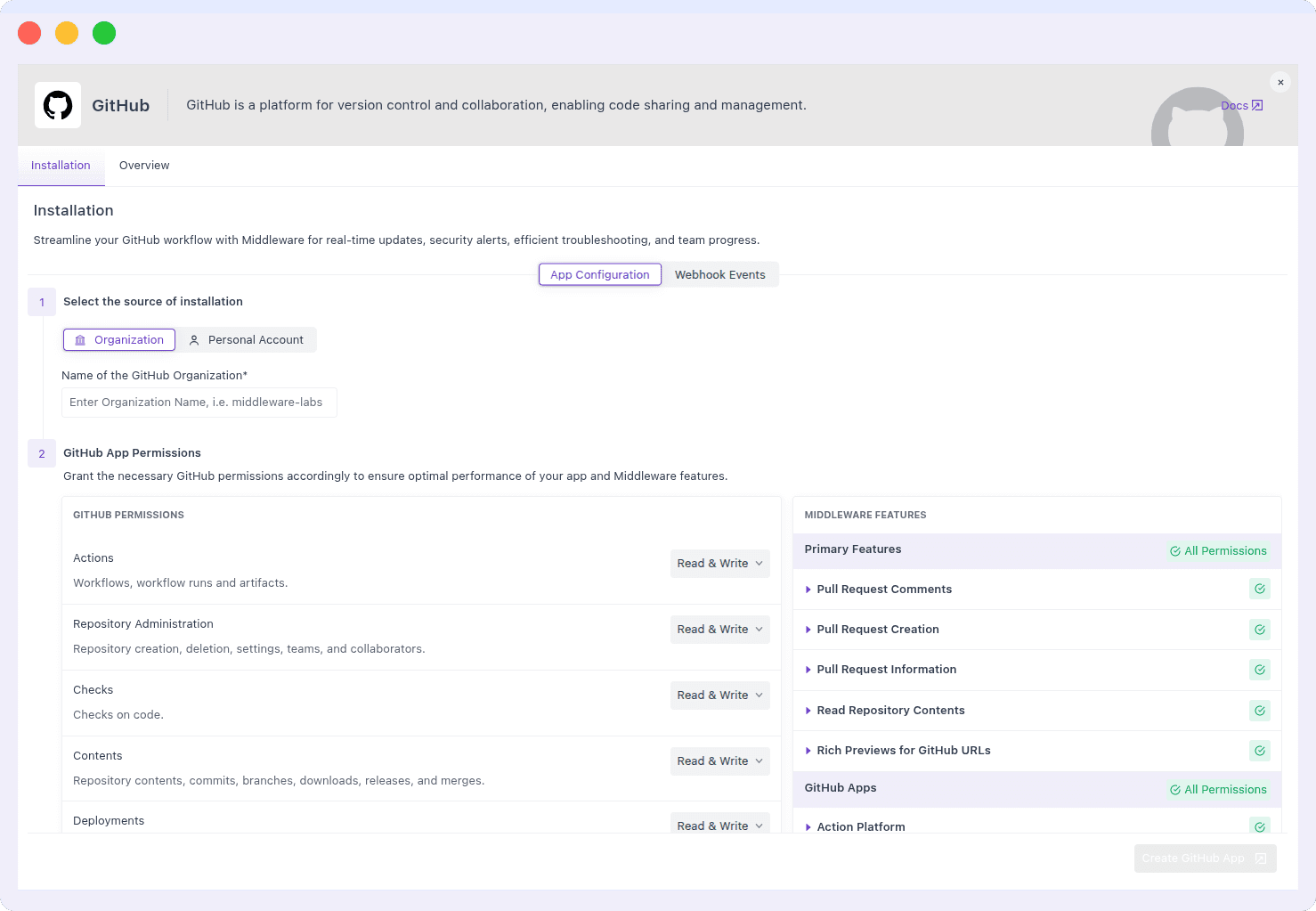

4. Setup GitHub App Permissions:

   • By default, Middleware requests the recommended permissions for all features.

   • To customize, adjust the permissions granted to Middleware. When you change them accordingly, you will see impact on particular associated functionality. By default, Middleware selects the recommended permissions for all features. If you modify permissions and omit required ones, the affected features will get affected. You can see highlights any missing permissions and their impact on functionality.



5. Click on the Create GitHub App button to complete the installation process at Middleware.

6. In GitHub, finalize App name and press Create GitHub App.

7. After this, you will be redirected to Middleware again.

Install and Authorize the GitHub App

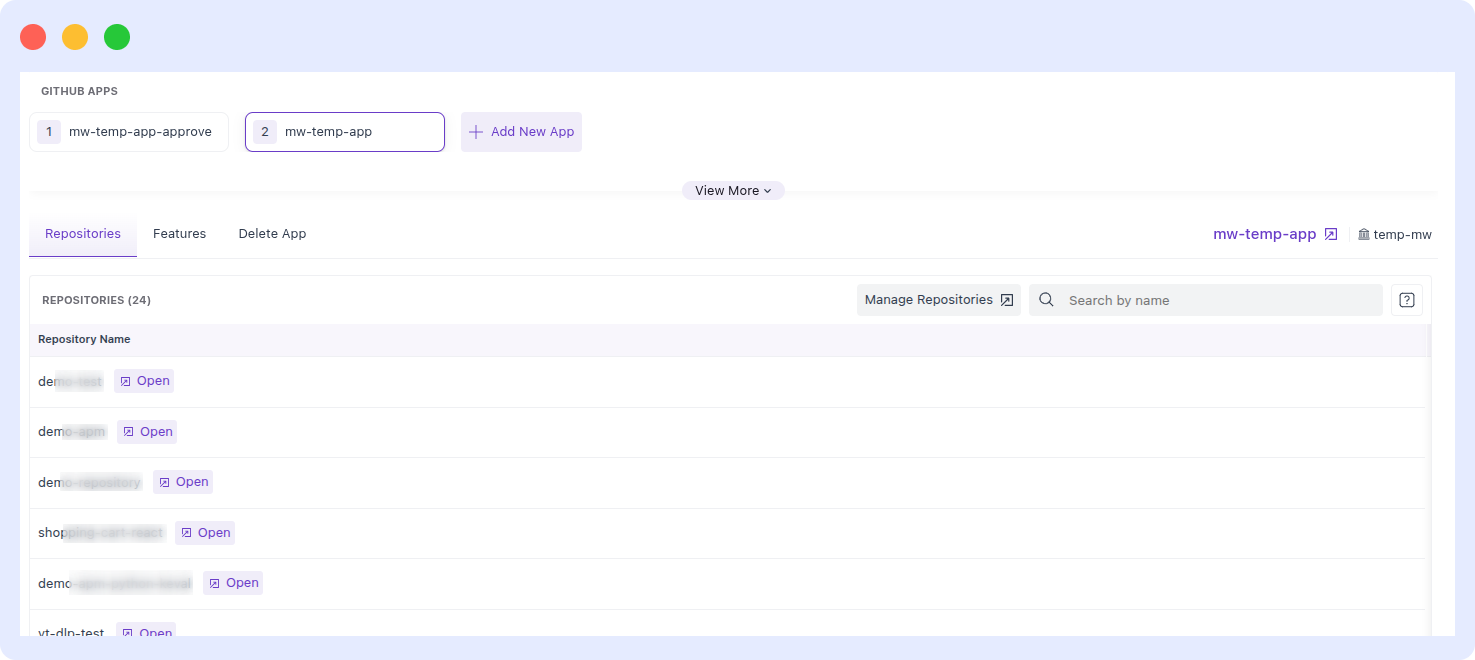

1. Now you can see the GitHub App listed in the App Configuration section.

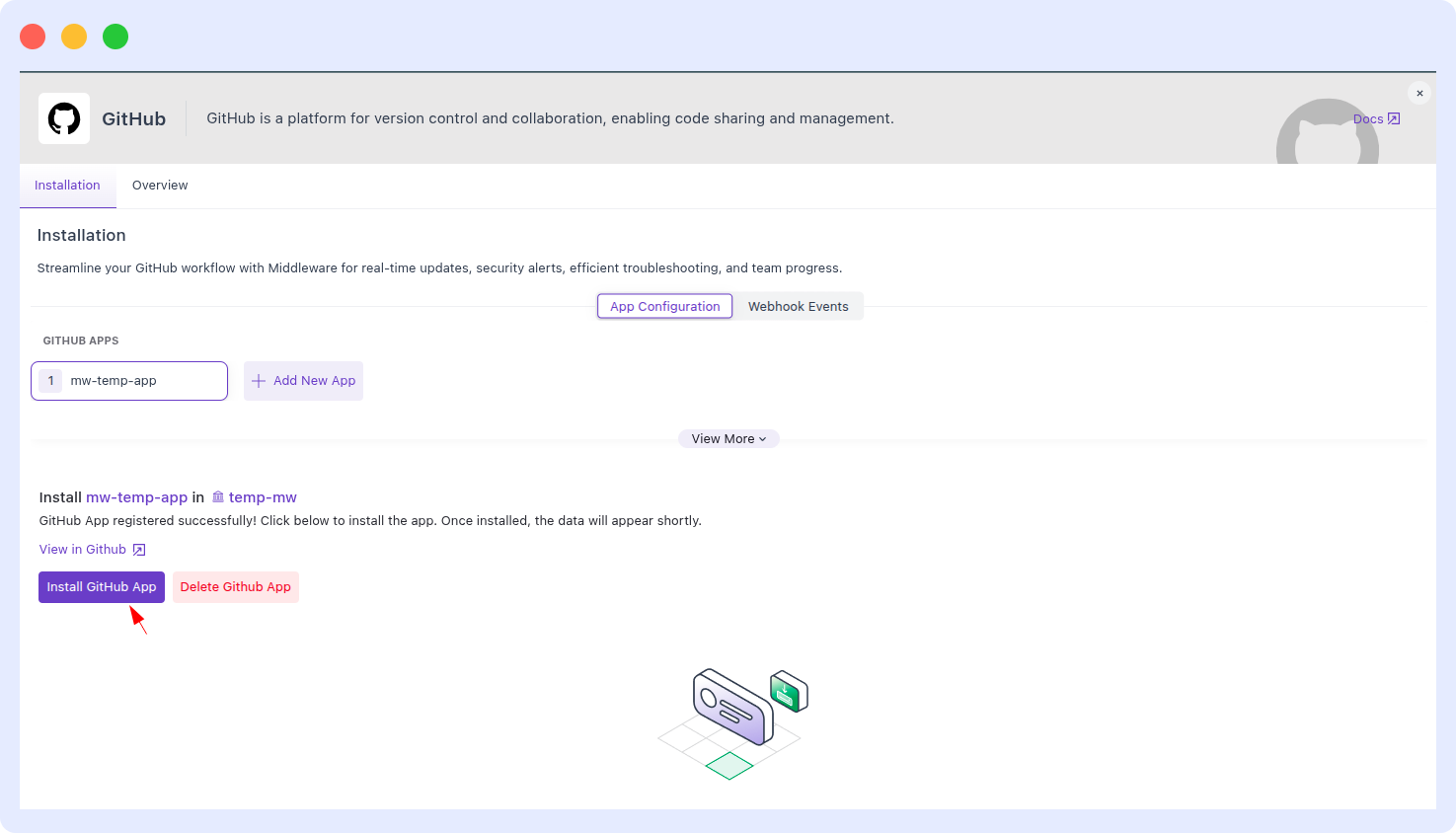

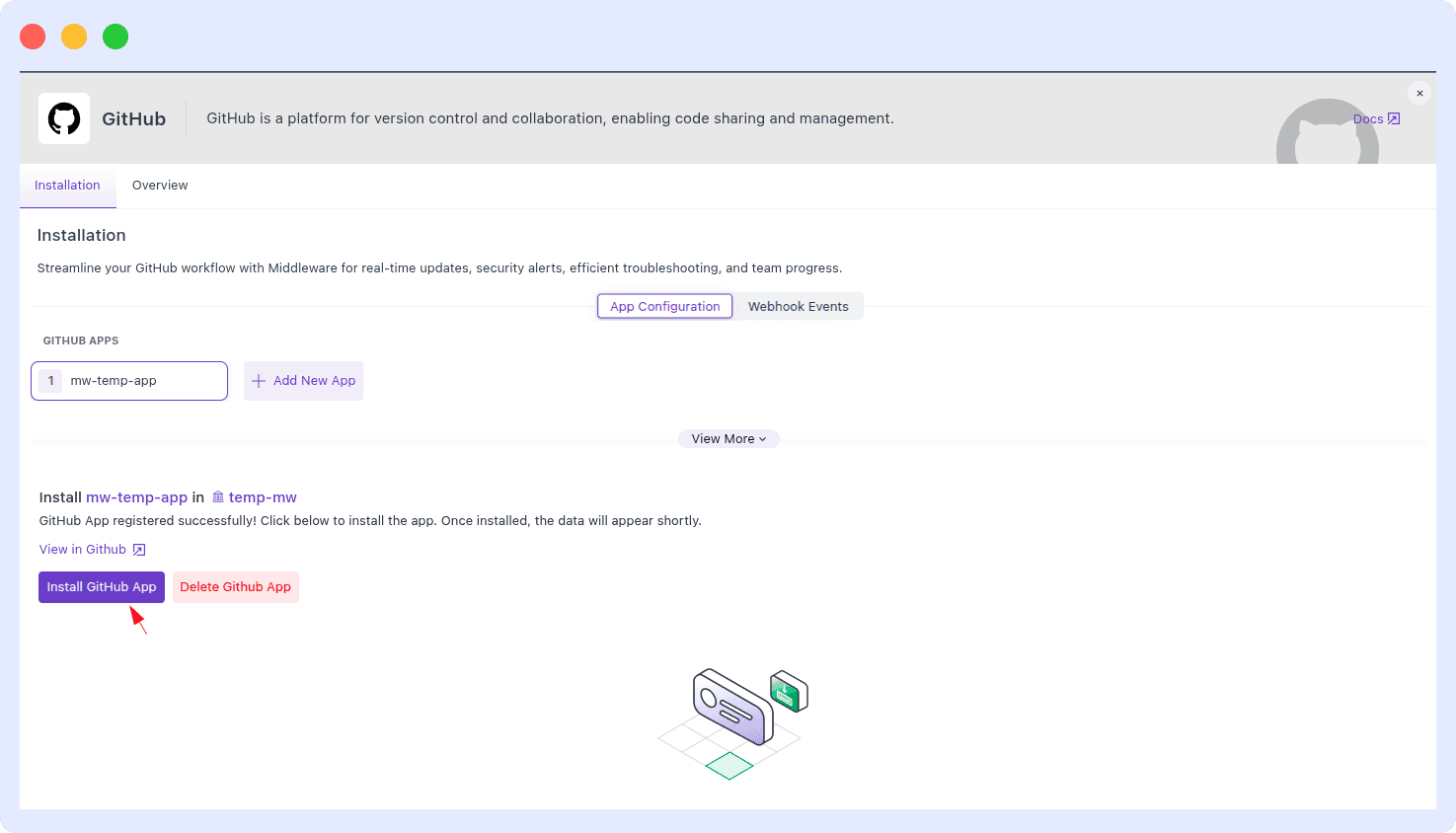

2. Click on the Install GitHub App button to proceed with the installation.



3. Select the repositories you want to connect with Middleware.

4. Click on the Install & Authorize button to complete the installation process.

5. Once the installation is successful, you will be redirected to Middleware.

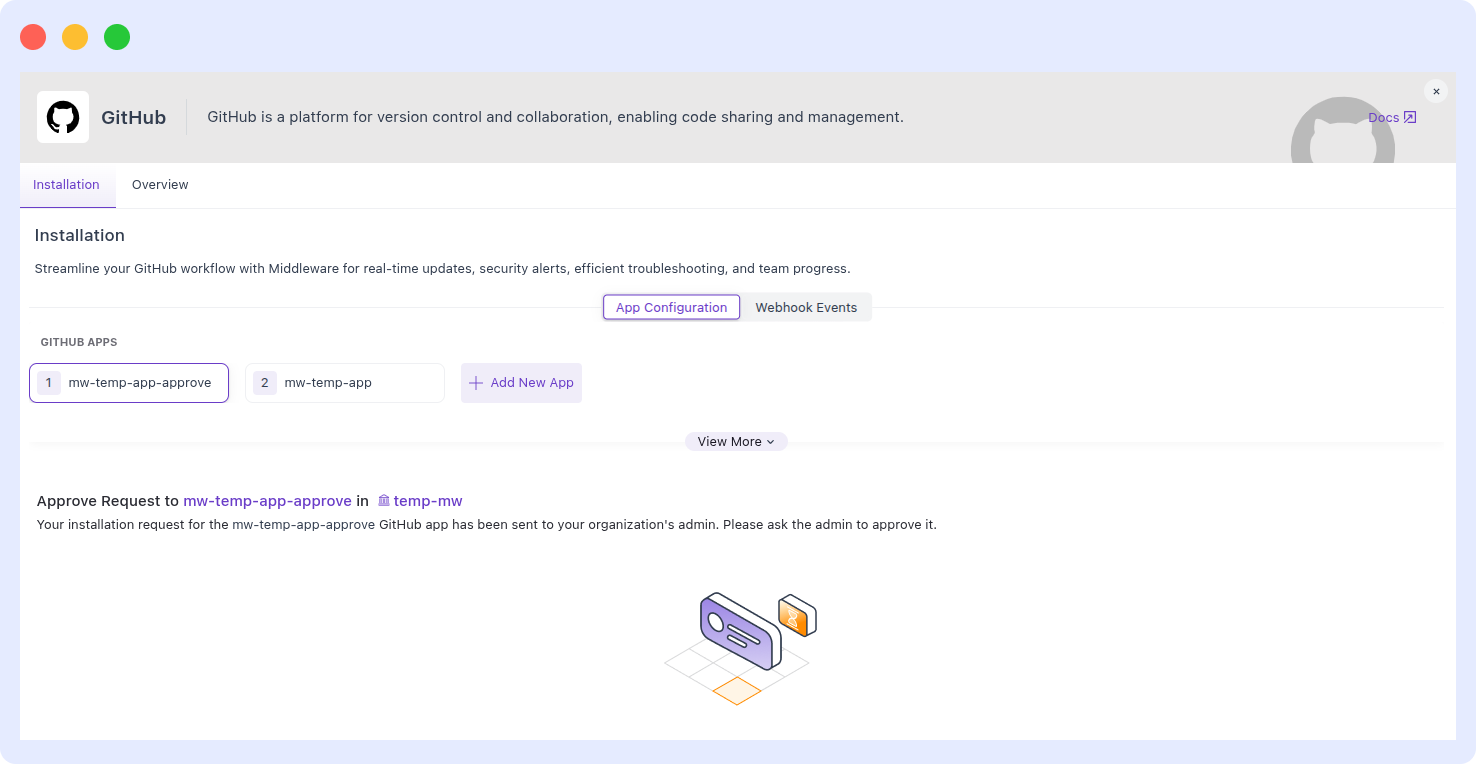

6. If you don't have access to the app installation permissions, then GitHub will send your request to the organization owner for approval.



Post-Installation

Once the GitHub App is installed and configured, you can immediately start using the enabled features within Middleware. For example:

• View and manage GitHub issues directly in Middleware.
• Automate fixes for identified issues and submit them as pull requests.
• Use AI-driven insights to analyze code and receive improvement suggestions to enhance your codebase.

Security Note: Middleware prioritizes your privacy and security. The GitHub App only accesses data necessary for the features you enable. You can review or adjust permissions anytime via your GitHub settings.

Webhook Events

The Webhook Events feature lets you monitor key GitHub repository activities in real time by sending event data to Middleware’s log listing section.

Setup

Follow these steps to set up GitHub integration with Middleware account.

1. Log in to your GitHub account and navigate to the Settings > Code and Automation > Webhooks.
2. Click on Add webhook.
3. In the Payload URL field, paste the Middleware's Intake Webhook URL, appears as:

https://<MW_UID>.middleware.io:443/v1/integration/github?mw_api_key=<MW_API_KEY>

4. Set the Content type to application/json.
5. Choose the events you want to track from the following list:
   • Branch or Tag Creation
   • Branch or Tag Deletion
   • Commit Comments
   • Dependabot Alert
   • Discussion
   • Discussion Comment
   • Issues
   • Issue Comments
   • Membership
   • Public - Visibility Changes
   • Pull Requests
   • Pull Request Reviews
   • Pull Request Review Comments
   • Pushes & Commits
   • Releases
   • Repositories
   • Security and Analyses
   • Sponsorship
   • Team and Team Adds
   • Watch

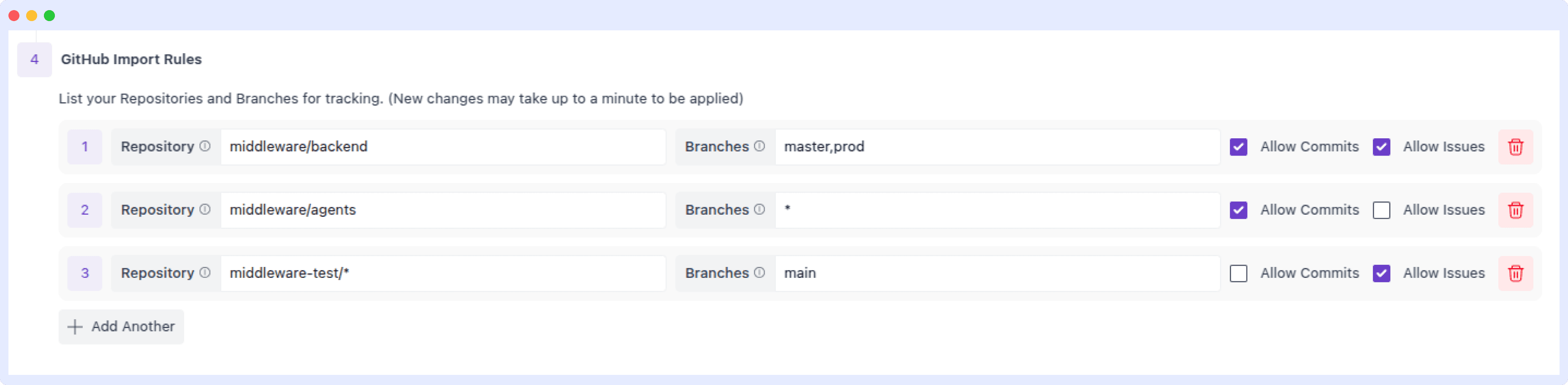

6. After saving the changes on the GitHub side, specify your desired repositories and branches on the Middleware side to filter the events you want to track.

Features

1. Real-Time Monitoring:

• Tracks pushes, commits, and pull requests instantly.

2. Build Failure Detection:

• Detects and alerts on build failures or system issues caused by code changes.

3. Enhanced Collaboration:

• Facilitates discussions and reviews directly within your workflow.

4. Incident Management:

• Links code events to new or existing incidents.

5. Security Monitoring:

• Monitors repository vulnerability alerts and collaborator changes.

GitHub Event Mappings

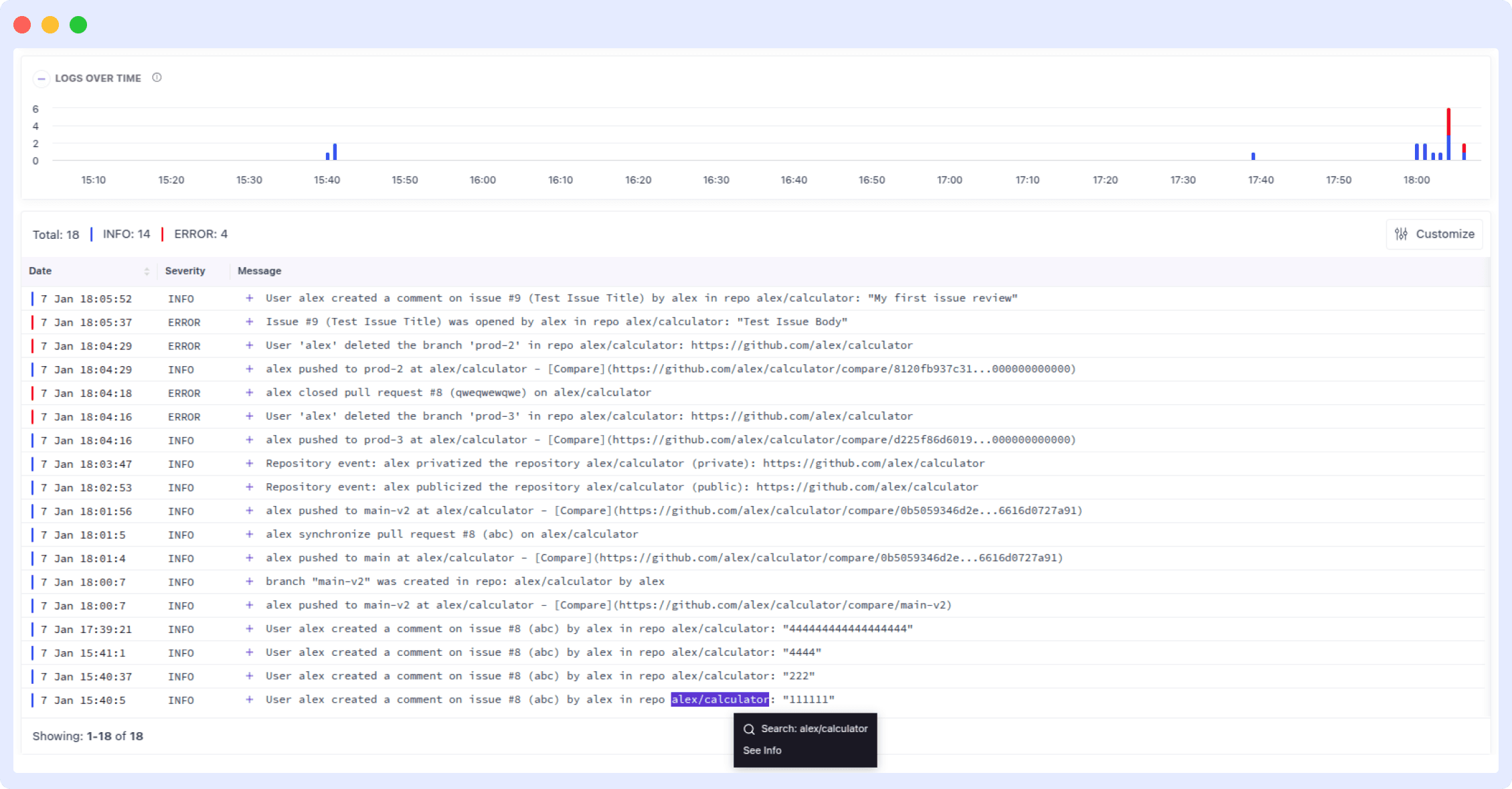

Middleware maps all supported GitHub events to corresponding log types on Middleware's logs screen. Each event is categorized by its action type and assigned a log level, such as info, warning, error, or debug. This ensures that events are appropriately flagged and prioritized for review. Below is an example of how some events are mapped:

• Create Branch/Tag Event: Marked as Info log.
• Delete Branch/Tag Event: Marked as Error log.
• Pull Request Event:
  • opened : Marked as Info log.
  • closed : Marked as Error log.
  • locked, unlocked, unassigned, unlabeled : Marked as Warning log.
  • ready_for_review, review_requested, review_request_removed : Marked as Debug log.

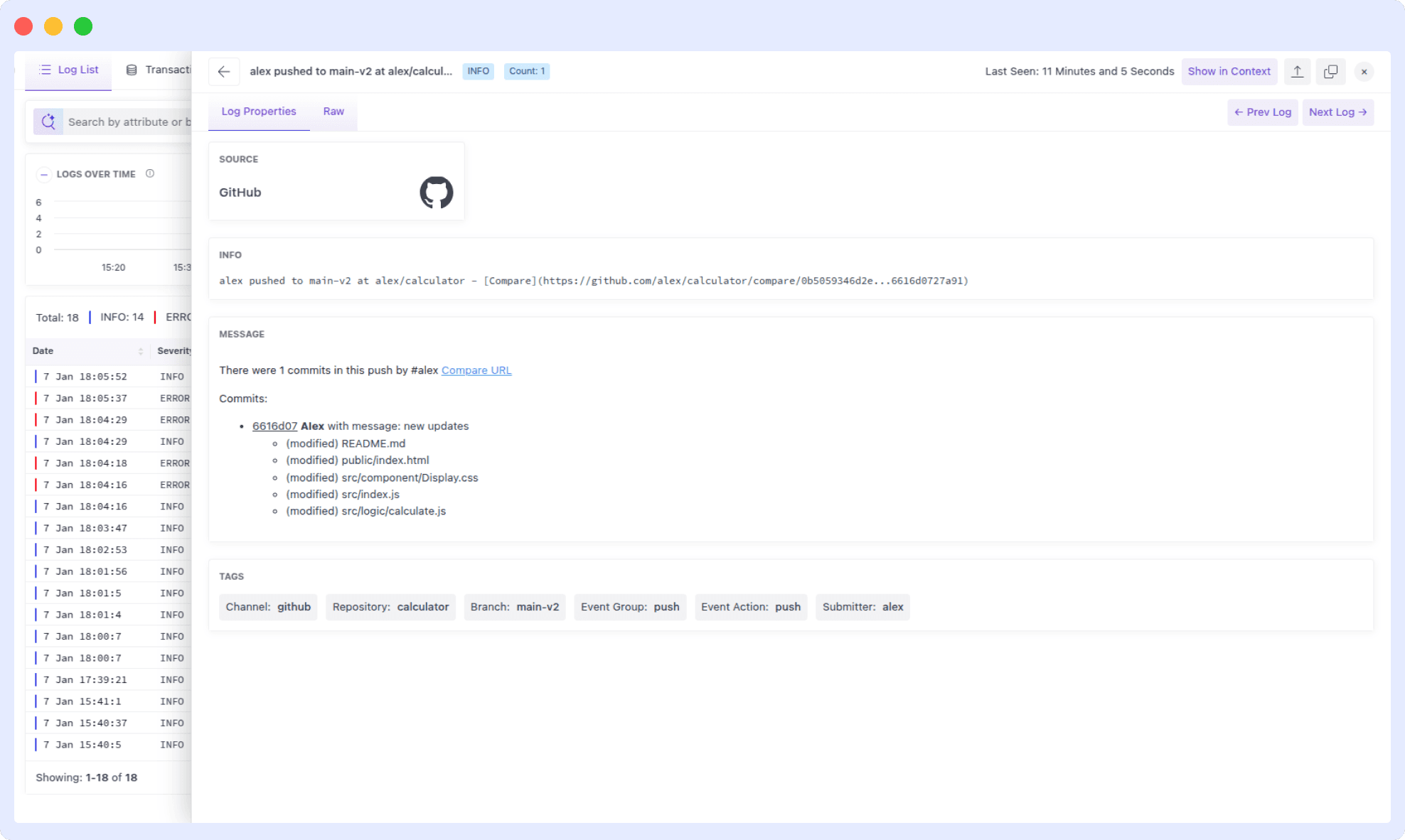

• Push Event: Marked as Info log.
• Issue Event: Marked as Error log.
• Release Event:
  • created, published, released : Marked as Info log.
  • edited : Marked as Warning log.
  • deleted : Marked as Error log.

Troubleshooting

Common Issues and Solutions

1. Webhook Not Triggering Events:

• Verify the Payload URL in GitHub settings.
• Ensure the events you wish to track are selected.

2. Missing Insights on Middleware Dashboard:

• Check if the webhook is active in GitHub.
• Verify that the repository and branch names are correctly entered in Middleware.

3. Security Alerts Not Captured:

• Ensure security-related events like Dependabot Alerts and Security and Analyses are enabled.

4. Incorrect Data Format:

• Set the Content type to application/json when configuring the webhook.
