DigitalOcean Managed Databases

DigitalOcean Managed Databases provide a fully managed, high-performance database cluster service.

Middleware enables seamless metrics and log collection from the following databases hosted on the DigitalOcean managed platform:

Prerequisites

Before setting up the integration, ensure you have a Droplet with Docker installed in the same VPC as your DigitalOcean managed database cluster.

Step-by-Step Configuration

1 Create Prometheus Configuration

Run the following command on your Droplet, replacing <database-name> with the database name you wish to observe:

DATABASE_NAME=<database-name> bash -c "$(curl -L https://install.middleware.io/scripts/digitalocean/do-managed-db-prometheus.sh)"

This script will:

Ask for your DigitalOcean API token.
Generate a prometheus.yml file, which will be used by do-collector (installed in Step 2).

Customization Options

You can use following environment variable to customize the script:

MW_PROMETHEUS_DIR – Directory where the prometheus.yml file and required certificates are stored on the Droplet. (Default: /etc/prometheus)

2 Install Middleware’s do-collector

The do-collector reads the Prometheus configuration from Step 1 and forwards metrics to Middleware.

Run the following command to install do-collector on the Droplet:

MW_API_KEY=<MW_API_KEY> MW_TARGET=https://<MW_UID>.middleware.io:443 bash -c "$(curl -L https://install.middleware.io/scripts/digitalocean/do-collector-docker-install.sh)"

Customization Options

This script supports the following environment variables:

MW_PROMETHEUS_DIR – Directory for prometheus.yml and certificates. If you had set this environment variable in the script used in step 1, you should use the same value here. (Default: /etc/prometheus)
MW_LOG_LEVEL – Logging level for do-collector. (Default: info)
MW_SYSLOG_HOST – Endpoint used in database log forwarding settings. (Default: Public IP address of the Droplet)
MW_SYSLOG_PORT – Port used in database log forwarding settings. (Default: 5514)

If you set MW_PROMETHEUS_DIR in Step 1, you must use the same value in this step.

Metric collection for your database will start automatically after this step.

3 Configure Logging

Once do-collector is installed, the script will output the details for log forwarding. Use this information to configure Rsyslog destination in your DigitalOcean managed database.

To configure log forwarding:

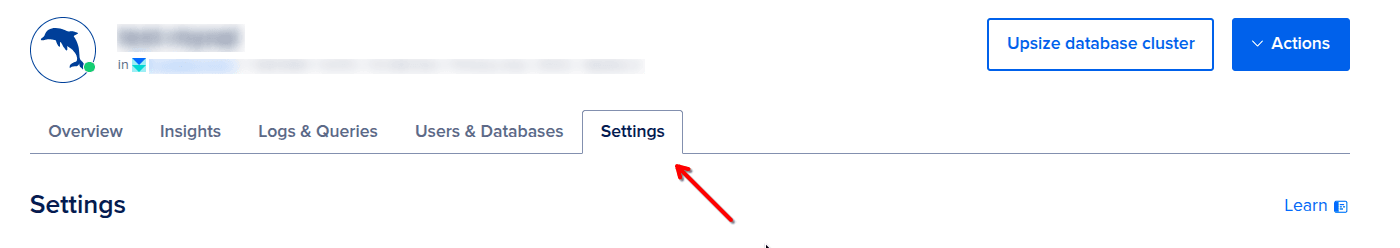

3.a Go to the Settings section of your DigitalOcean Managed Database.

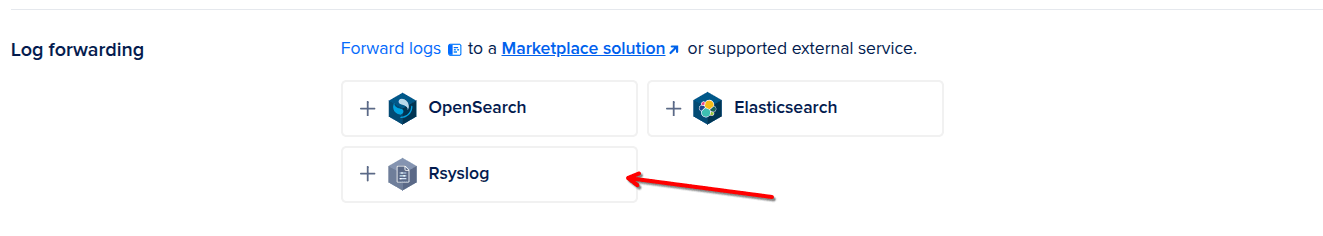

3.b Under Log Forwarding, select the Rsyslog option.

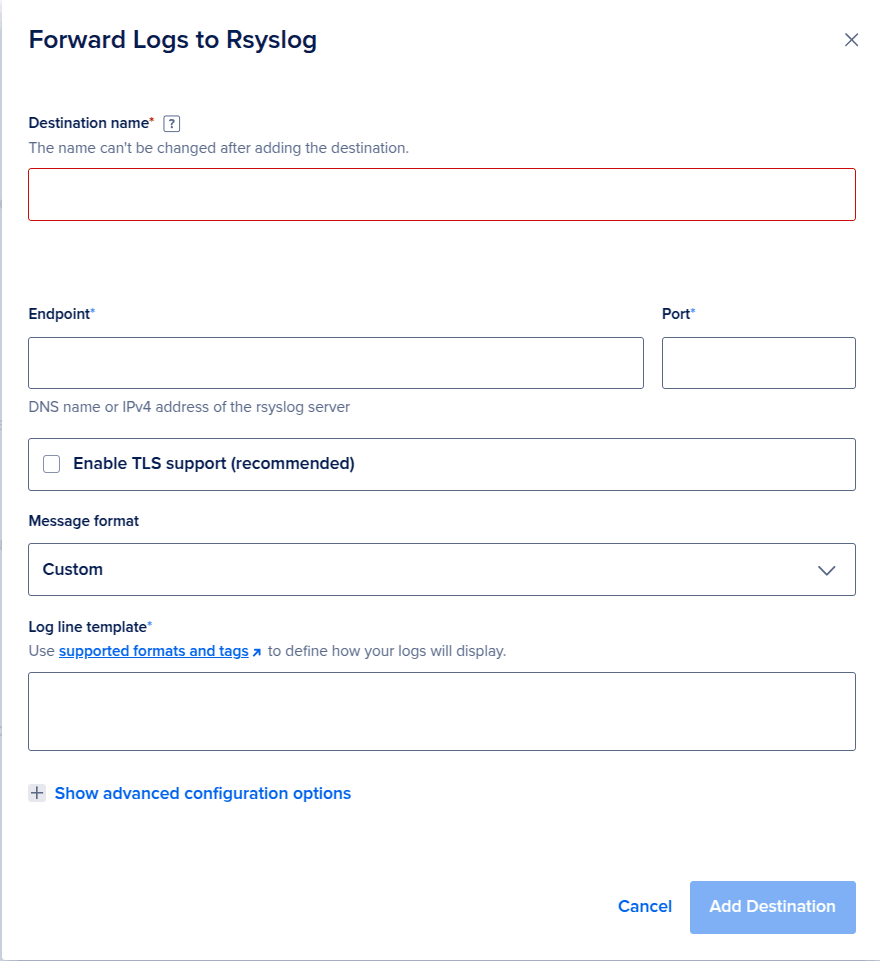

Enter the following details:

Destination Name: <database-name>-middleware.io
Endpoint: Public IP address of the Droplet running the do-collector container.
Port: 5514
Enable TLS Support: ✖ Uncheck this option.
Message Format: Custom
Log Line Template: <%pri%>1 %timereported:::date-rfc3339% %HOSTNAME% %app-name% %procid% - - %msg%\n

All the configuration details for log forwarding is also output by the script in Step 2.

<database-name> in the Destination Name is the name of your Database for which log forwarding is being configured.

5514 is the default RSyslog port used by do-collector. This can be customized by setting MW_SYSLOG_PORT environment variable used by the script in step 2.

Ensure that Log Line Template value is exactly as shown above including the \n at the end.

4 Hardening Access

To enhance security:

Add the Droplet running do-collector to the Trusted Sources configuration of your database clusters.
Configure firewall rules on the Droplet to allow incoming connections from your database clusters to the Syslog port used by do-collector (5514 by default). This ensures that only authorized sources can send logs to the do-collector.
