Cycle.io Log Drains

cycle.io HTTP/S log drains buffer log messages and submit batches of messages to an HTTPS endpoint via a POST request. The POST body contains NDJSON formatted log messages.

Middleware’s HTTP API implements and understands the NDJSON formatted messages and can extract additional metadata sent by cycle.io in HTTP POST headers to enrich log messages.

Steps

1 Navigate to Container Log Drains Configuration

Log in to your cycle.io account and navigate to Environments > <environment-name> > Containers > <container-name> > Config > Integrations.

<environment-name> and <container-name> are the names of the cycle.io Environment and Container for which you want to configure Log Drains.

2 Enable Instance Logs Customization

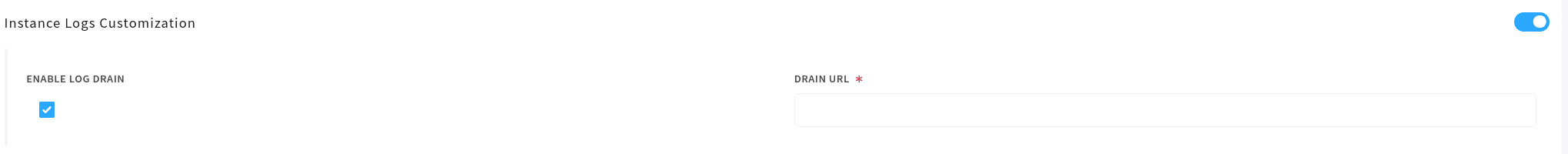

Under Integrations, enable Instance Logs Customization integration option. The integration option will look like below

advance multi step option

3 Configure Log Drain URL

Under Drain URL, enter the URL below

Attribute Overrides

Middleware automatically extracts metadata from cycle.io log messages and adds following attributes. You can override these attributes by passing in relevant query parameters in the Drain URL as listed below

  • Service Name: Use service query parameter to override service.name attribute for your log messages.
  • Application Name: Use app query parameter to override app.name attribute for your log messages.
  • Source: Use source query paratmer to override source attribute for your log messages.

Below is an example of the Drain URL with attribute overrides

Custom attributes:

You can add custom attributes to your logs by passing additional query parameters in the Drain URL as follows:

In the above command, my-attribute in query parameter is the custom attribute and my-value is the value for that attribute.

Middleware platform limits the number of custom attributes to 50. This includes any of the attribute overrides mentioned in the previous section.
