Docker

This guide walks you through installing the Infrastructure Agent (Infra Agent) on a host via Docker. These instructions can also be found on the Installation page in the Middleware platform.

The Docker Infra Agent is a containerized version of the Infra Agent. Upon installation, the Infra Agent collects host level details using Docker's bridge gateway and uses volume binding to read logs.

Step 1: Run the Docker Install Command

Option 1: Run the Command Normally

Copy and run the installation command. If the values for MW_API_KEY and MW_TARGET are not visible, either log in or copy the command directly from the Installation page to ensure your MW_API_KEY and MW_TARGET are correct.

MW_API_KEY="<MW_API_KEY>" MW_TARGET=https://<MW_UID>.middleware.io:443 bash -c "$(curl -L https://install.middleware.io/scripts/docker-install.sh)"

Option 2: Run the Command With Host Tags [Optional]

Create filterable custom tags by adding the MW_HOST_TAGS environment variable to the installation command as comma-separated key-value pairs. Use the tag name to create an alias for the host (e.g. name:load-balancer1).

MW_HOST_TAGS=key1:value1,key2:value2,... MW_API_KEY="<MW_API_KEY>" MW_TARGET=https://<MW_UID>.middleware.io:443 bash -c "$(curl -L https://install.middleware.io/scripts/docker-install.sh)"

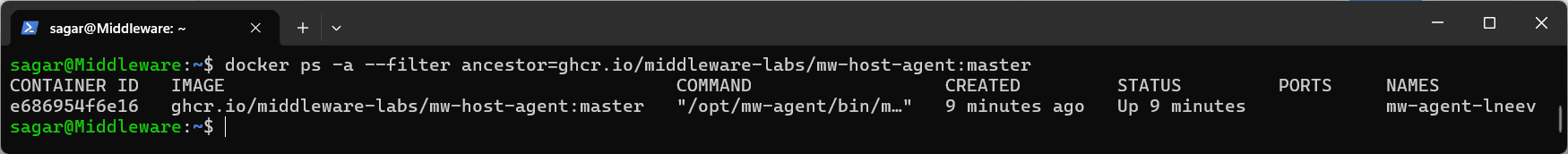

Step 2: Verify Installation

Verify the status of the Docker Infra Agent. If the status is UP or Exited, the installation was successful. If the status is blank, the installation was unsuccessful. Run the following command to verify the Infra Agent's status:

Shell

shell

docker ps -a --filter ancestor=ghcr.io/middleware-labs/mw-host-agent:master

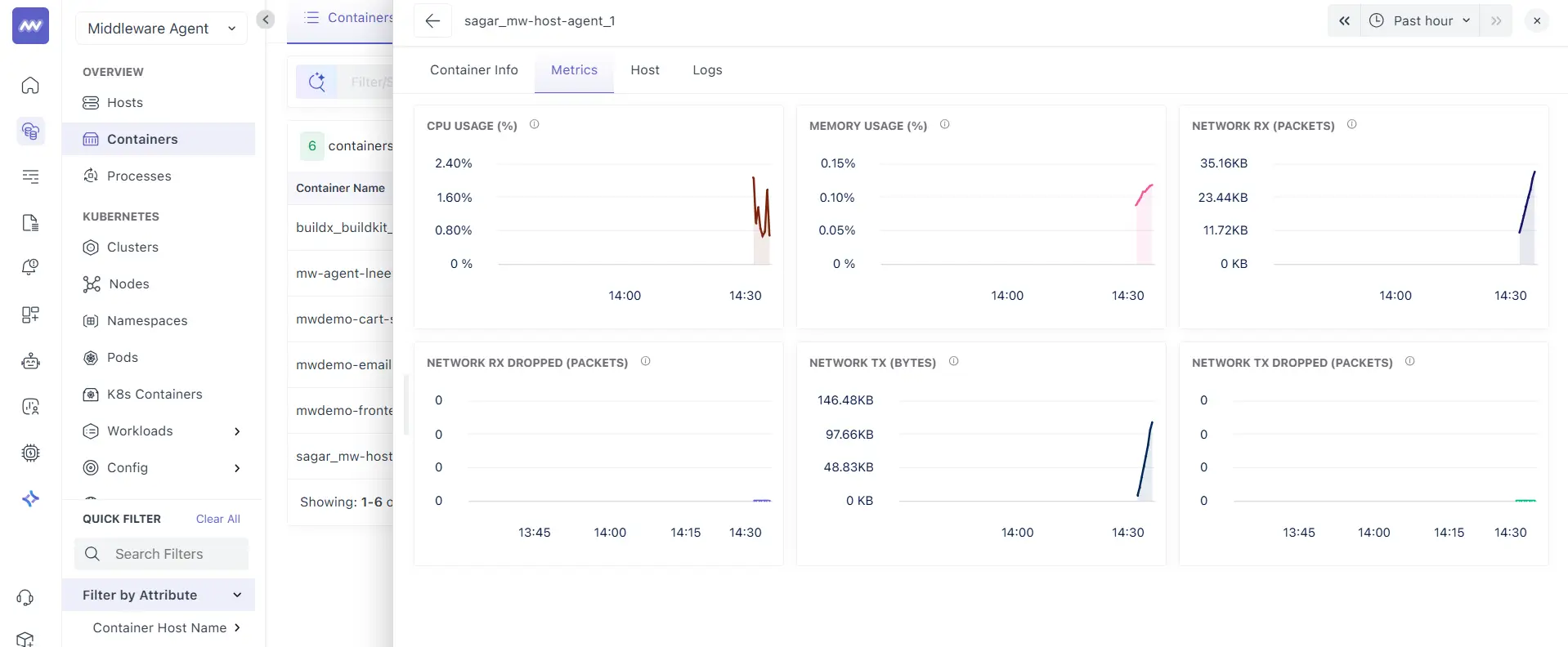

Step 3: Check Your Dashboard

Navigate to the Middleware platform and ensure that the host and it's metrics appear in the Installation page. It can take up to a few minutes for metrics to first appear. If metrics do not appear after a few minutes, head to our troubleshooting section for common issues.

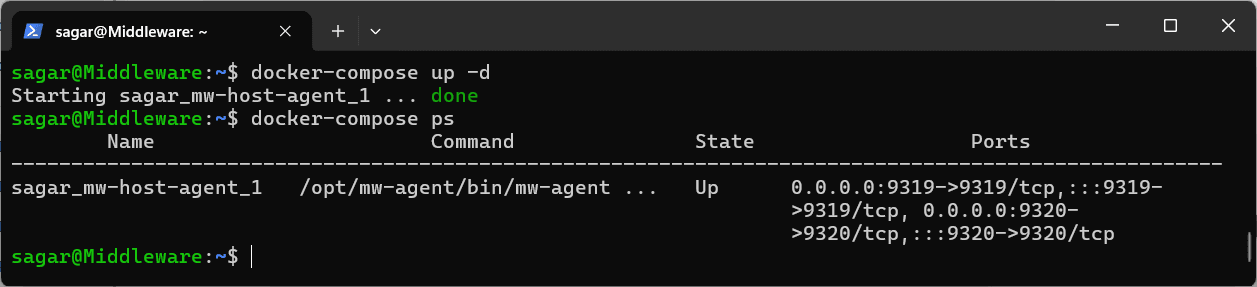

Docker Compose

To run the container with Docker Compose or to review the necessary ports, volumes, privileges, and network mode for running it, please refer to the Docker Compose file below for more details.

version: "3.8"
services:
  mw-host-agent:
    image: ghcr.io/middleware-labs/mw-host-agent:master
    environment:
      - MW_API_KEY=your-initial-token
      - MW_TARGET=your-initial-uid
    ports:
      - 9319:9319
      - 9320:9320

Troubleshooting

Once the Infra Agent is installed, metrics should appear in the Middleware platform within a few minutes. If metrics do not appear, confirm that the host has access to the internet, either directly or through a proxy, and that only one Infra Agent per container is running.

Uninstall

To uninstall the Infra Agent use the following commands:

Shell

shell

docker stop `docker ps -a -q --filter ancestor=ghcr.io/middleware-labs/mw-host-agent:master`
docker rm `docker ps -a -q --filter ancestor=ghcr.io/middleware-labs/mw-host-agent:master`
